Referance Standard:BS1363.3

Application

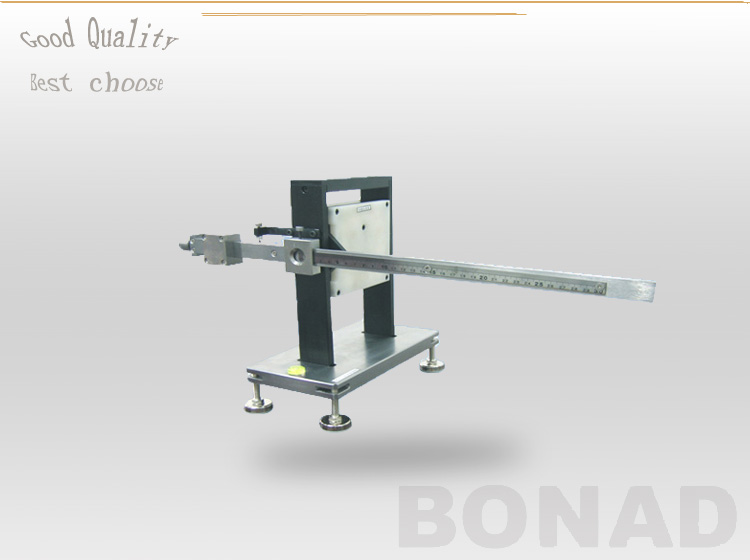

Socket-outlet Torque Balance Tester is used for testing the torque strain exerted by the input socket-outlet and the devices with plug pins on output socket-outlets.The balancing arm of the test apparatus pivots about a horizontal axis through the  center lines of the contact tubes of the socket-outlet at a distance of 8 mm  behind the engagement face of the socket-outlet.

Outfit:

Duing to the different standards of different countries,the device is contained three socket clamps,If the necessary clamps are more than 3 ,it may be on request.

In addition ,it includes a 5N weight and a 1N weight
